Deep Drawing & Stamping Compounds
1. Sun Drawmet
Appearance : Thick cream paste
METHOD OF USE
Take Drawmet in a container, Dilute it with water to the required consistency. Add water to the Drawmet, not Drawmet to water. Add water in small batches, working out homogeneous mix after each addition of water. Apply dilute Drawmet to both the sides of sheet to be drawn with the help of brush. Place the sheet on the die and take out the draw. Apply Drawmet to the die also after 2 - 3 draws. Drawmet can also be applied to the metal sheets by dipping them in its diluted form.
APPLICATIONS IN DRAWING OF
- COPPER WIRE
- LPG CYLINDER HALVES, GAS STOVES

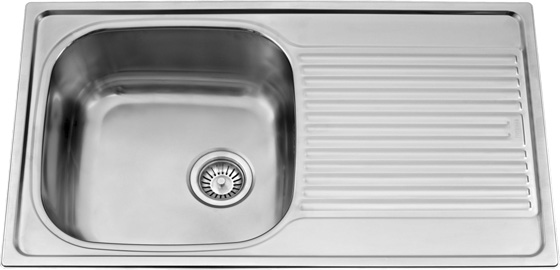

- KITCHEN WARE, STEEL SINK, UTENSILS
- SHEET METAL COMPONENT OF CARS, SCOOTERS, TRACTORS, TRUCKS ETC.
ADVANTAGES OF DRAWMET
- Easy to apply, Water soluble / Economical
- Minimise rejections / Minimise Wrinkle & Scratches
- Safeguard your dies & dies dimensions
- Maintain accuracy of the product
- Reduce Heat Generations and Frictions
- Decrease Wear Rate of Dies & Increase DIE life
- Easy washability with water
2. SUN LIQUI DRAW
Versatile, liquid drawing compound for deep drawing, stamping, blanking, and other forming operations for all metals. Depending upon application, it may be diluted up to 50% by volume with water. It provides excellent lubrication for working metals, and has fine coolant properties to prevent die galling and metal-to-metal contact. By minimizing die corrosion, it increases tool life. If necessary, parts may be easily cleaned before subsequent operations.
Applications/Properties
SUN LIQUI DRAW may be applied full strength to sheet metal through conventional equipment (roller, brush or drip-line). Adjust the applicator to provide a uniform coating. For less difficult operations, dilute up to 50% volume with water.
CHEMICAL CHARACTERISTICS
|
Chemical composition |
Liquid soaps |
|
Physical form |
Yellow liquid |
|
Odor |
Bland |
|
Specific gravity |
0.970 |
|
Flash point |
None |
|
Foaming tendency |
Low |
|
Recommended diluent |
Water |
|
Maximum solubility |
Complete |
|
Rinseability |
Best with hot water |
|
Biodegradable |
Yes |
|
Phosphate-free |
Yes |
|
Normal operating temperatures |
Room temperature |
|
Normal working concentrations |
50% by volume to full strength |
|
pH at working concentrations |
8.0 at 50% by volume |
|
Effect of working solutions on metals |
Applicable on steel, stainless steel, aluminum, zinc, copper and brass; moderate attack on magnesium |
Ultimate performance blend of highly fatted mineral oils, fortified by chlorinated extreme pressure additives and complex additive package.
Applications/Properties
SUN HDC 64 is a high performance deep drawing lubricant intended for use in the most severe deep drawing operations. Appearance is brown in colour.
- Extreme-pressure mineral oil blend formulated for deep drawing operations.
- Suitable for blanking, stamping and tube bending of stainless and alloy steels.
- High lubricity minimizes die wear and gives excellent surface finish
- Minimum power consumption for given depth of draw.
|
SPECIFICATIONS |
HDC 64 |
|
Density gm/c³ at 30 ºC |
1.06 |
|
Flash Point COC ºC |
>180 |
|
Appearance |
Brown Liquid |
